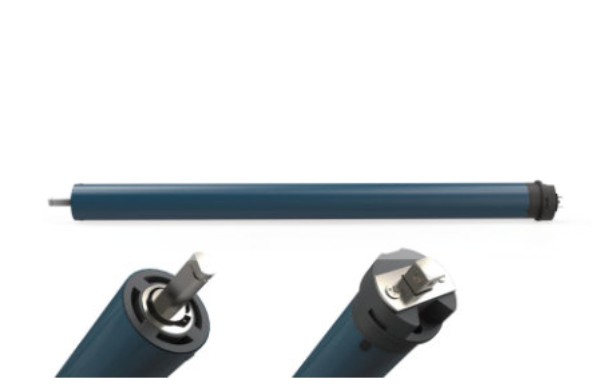

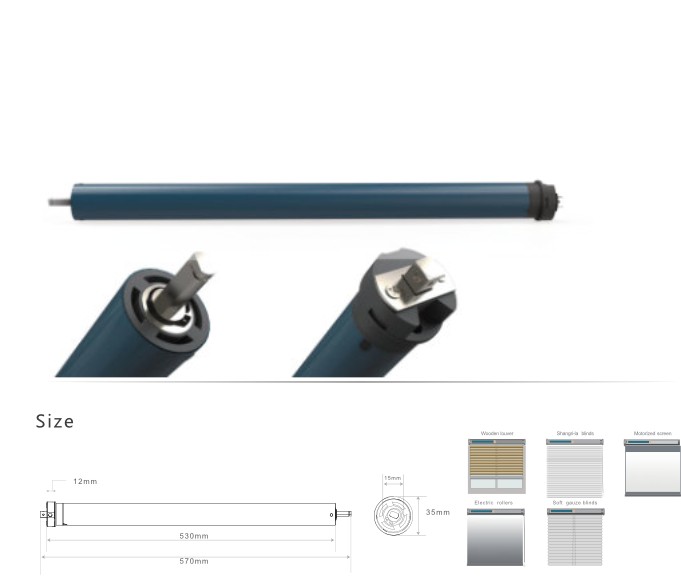

BTM35AE-SW AC Tubular Motor

Features

1. Wide voltage input

2. Electronic position limit

3. Auto stop

Parameters

Product model: BTM35AE-SW

Control mode: Dry contact

Rated torque: 6 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 35 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 20 KG

Motor speed: 50 r/min

Certificate: CCC, CE

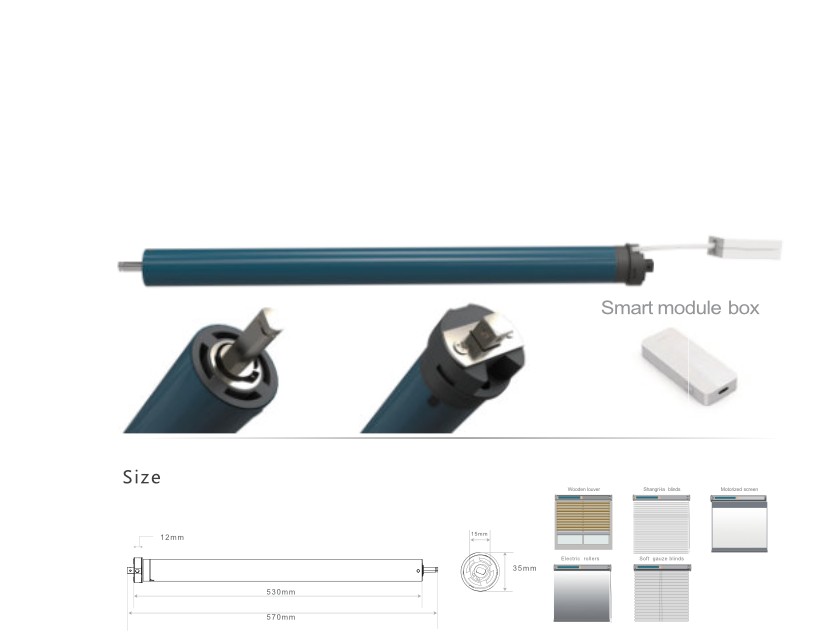

BTM35AE-KNX AC Tubular Motor

Features

1. Wide voltage input

2. Electronic position limit

3. Auto stop

Parameters

Product model: BTM35AE-KNX

Control mode: KNX bus control

Rated torque: 6 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 35 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 20 KG

Motor speed: 50 r/min

Certificate: CCC, CE

BTM35AE-TYZ AC Tubular Motor

Features

1. Wide voltage input

2. Electronic position limit

3. Auto stop

Parameters

Product model: BTM35AE-TYZ

Control mode: Tuya ZigBee control

Rated torque: 6 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 35 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 20 KG

Motor speed: 50 r/min

Certificate: CCC, CE

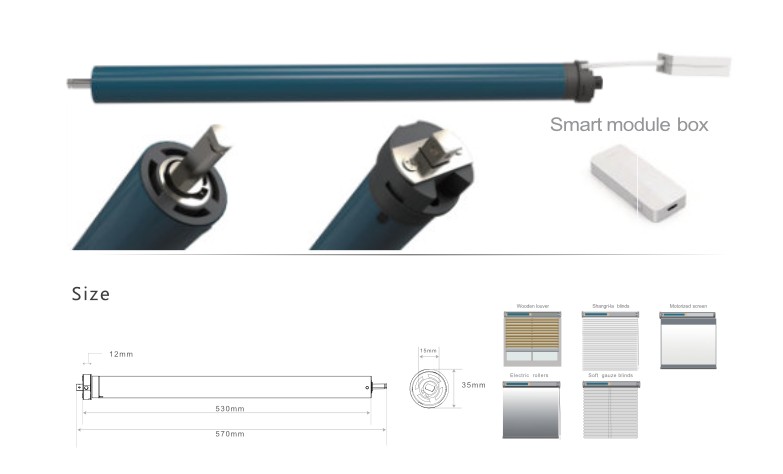

BTM35AE-TYW AC Tubular Motor

Features

1. Wide voltage input

2. Electronic position limit

3. Auto stop

Parameters

Product model: BTM35AE-TYW

Control mode: Tuya Wi-Fi control

Rated torque: 6 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 35 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 20 KG

Motor speed: 50 r/min

Certificate: CCC, CE
