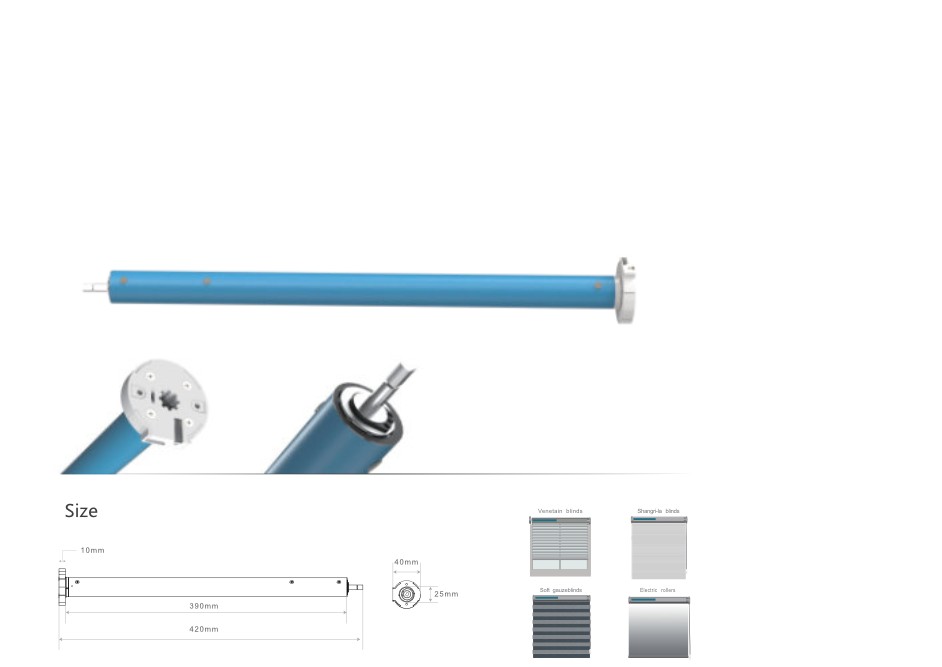

BTM25DE DC Tubular Motor

Parameters

Product model: BTM25DE-SW

Control mode: Dry contact

Rated torque: 1.2 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 25 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 6 KG

Motor speed: 50 r/min

Certificate: CCC, CE

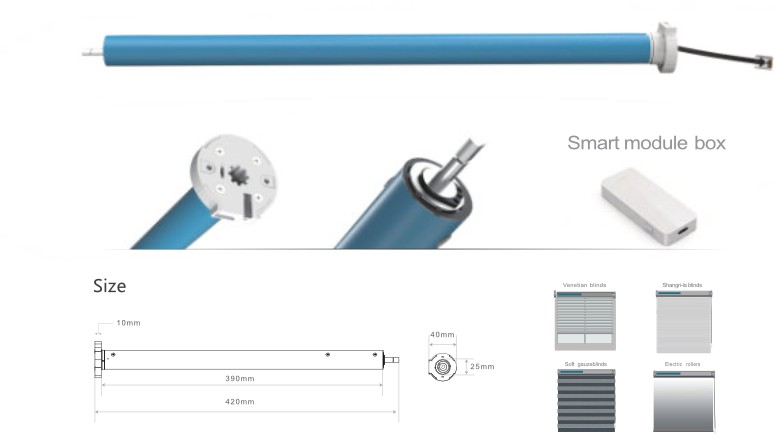

BTM25DE-matter DC Tubular Motor

Parameters

Product model: BTM25DE-Matter

Control mode: App control

Rated torque: 1.2 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 25 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 6 KG

Motor speed: 50 r/min

Certificate: CCC, CE

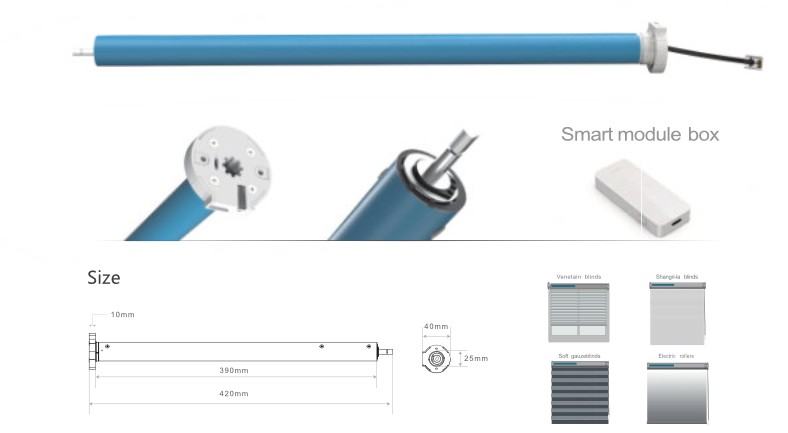

BTM25DE-KNX DC Tubular Motor

Parameters

Product model: BTM25DE-KNX

Control mode: KNX bus control

Rated torque: 1.2 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 25 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 6 KG

Motor speed: 50 r/min

Certificate: CCC, CE

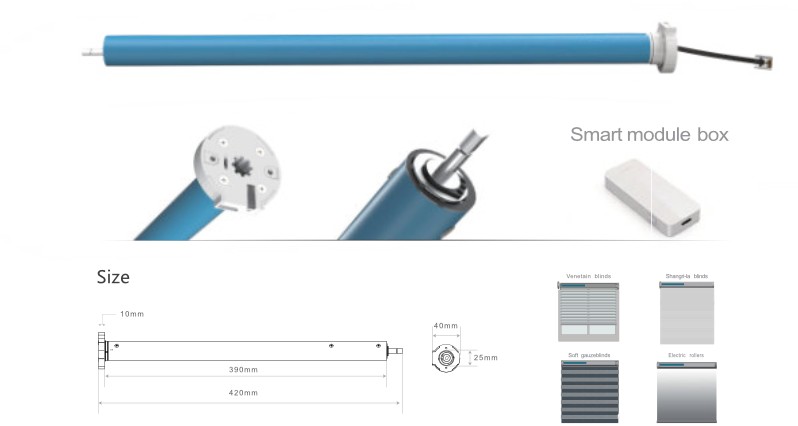

BTM25DE-TYZ DC Tubular Motor

Parameters

Product model: BTM25DE-TYZ

Control mode: Tuya App Control

Rated torque: 1.2 Nm

Rated voltage: AC 100-240V

Rated power: 6 W

Radio frequency: 433 RF

Pipe diameter: 25 mm

Rated speed: 28 rpm

IP proof: IP 44

Working temperature: -15 - 65℃

Max load: 6 KG

Motor speed: 50 r/min

Certificate: CCC, CE
