Description

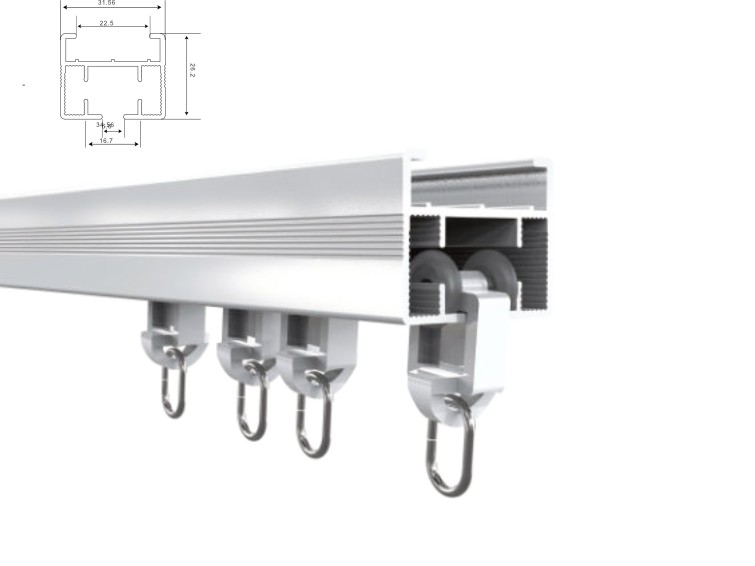

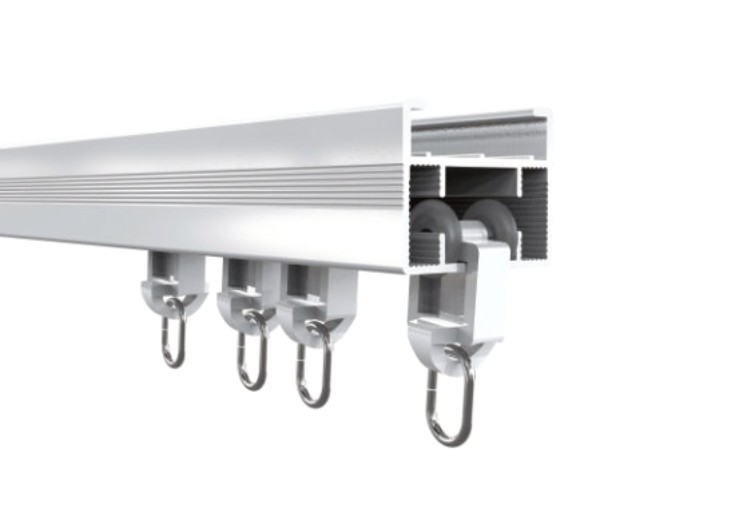

Yulitex-B (Tritex) Track
Parameters
Product model: Yulitex-B (Tritex) track
Surface: Electrophoresis
Thickness: 1.2 mm
Max load 3m length: 50 KG
Yulitex-B(Tritex) track carrier
Parameters
Product model: Yulitex-B(Tritex) track carrier
Belt Buckle: POM
Material of wheel: LDPE
Main part of carrier: POM
Carrier arm: 430 stainless steel
Fixing plate: 430 stainless steel
Rivets moving gap: ≤ 0.9 mm
Max load (static): 15 KG
Max load (moving): 7 KG
Note:
The carrier arm, fixing plate, connecting plate, rivets, and screws have all passed the 48 hour salt spray test.
When the lateral extension length of the arm is 20 mm, the manual operate experience is the most comfortable.
Yulitex-B(Tritex) Track Gear Box

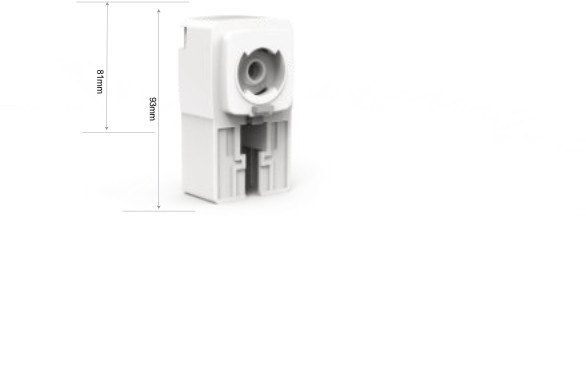

Yulitex-B (Tritex) 50 master gear box V 1.0
Parameters
Product model: Master gear box V1.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 81 mm

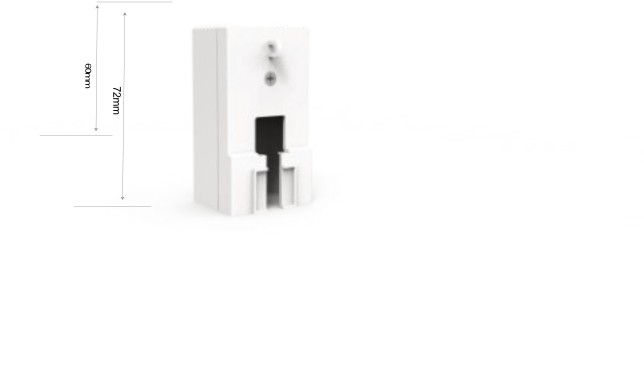

Sub gear box V 1.0
Parameters
Product model: Sub gear box V 1.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 48 mm
Yulitex-B(Tritex) 82 master gear box V 1.0
Parameters
Product model: 82 Master gear box V1.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 75 mm

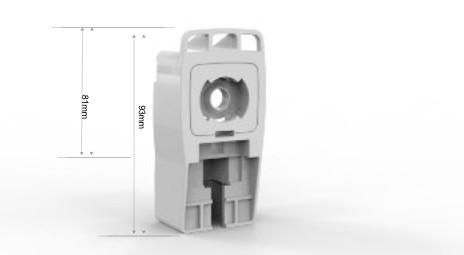

Yulitex-B(Tritex) 50 master gear box V 2.0
Parameters
Product model: Master gear box V2.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 81 mm
