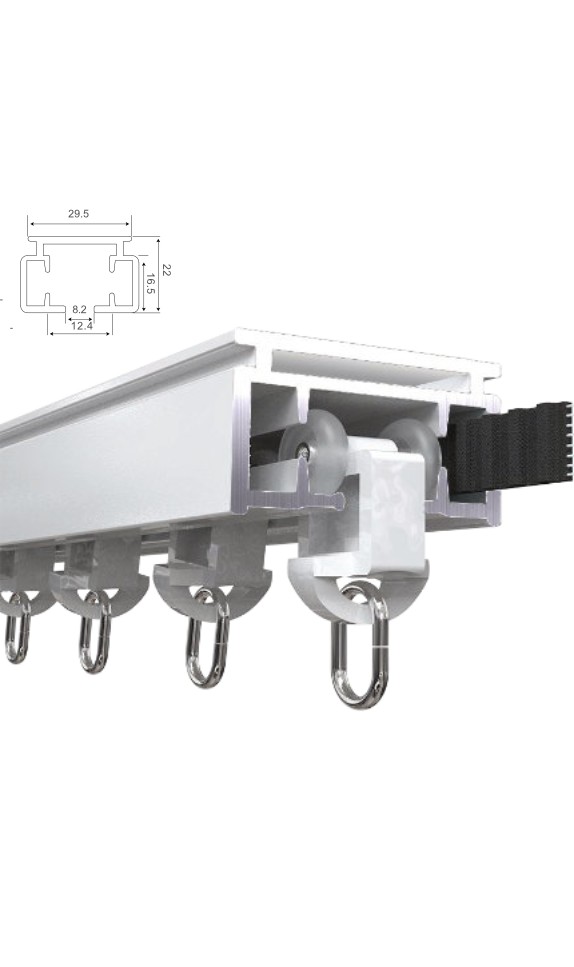

Yulitex-C (Somfy) Track

Parameters

Product model: Yulitex-C (Somfy) track

Surface: Electrophoresis

Thickness: 1.2 mm

Max load 3m length: 50 KG

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

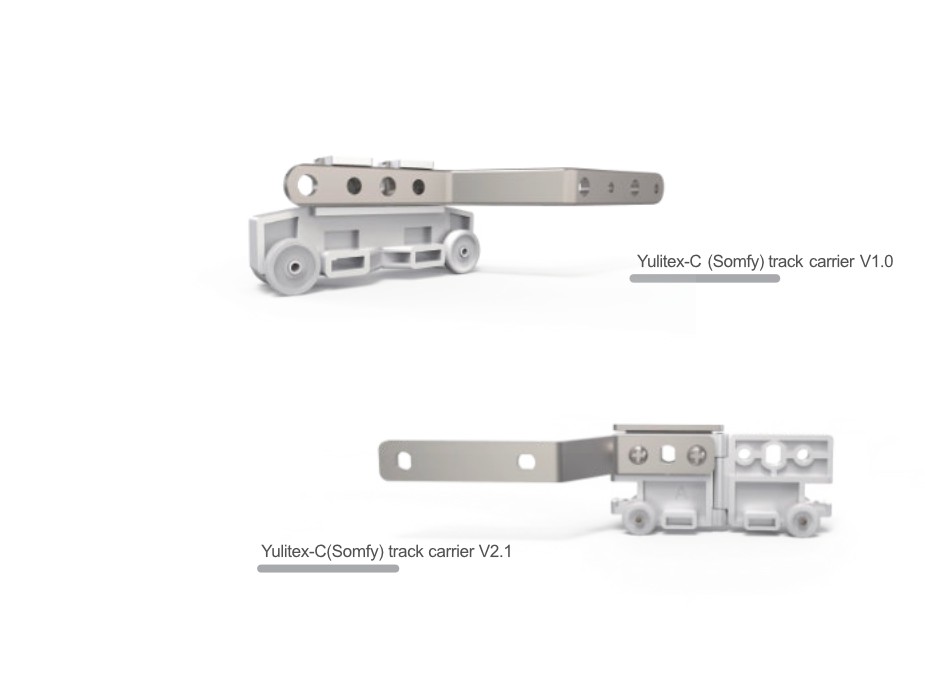

Yulitex-C (Somfy) track carrier

Parameters

Product model: Yulitex-C (Somfy) track carrier

Belt Buckle: POM

Material of wheel: LDPE

Main part of carrier: POM

Carrier arm: 430 stainless steel

Fixing plate: 430 stainless steel

Rivets moving gap: ≤ 0.9 mm

Max load (static): 15 KG

Max load (moving): 7 KG

Note:

The carrier arm, fixing plate, connecting plate, rivets, and screws have all passed the 48 hour salt spray test.

When the lateral extension length of the arm is 20 mm, the manual operate experience is the most comfortable.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

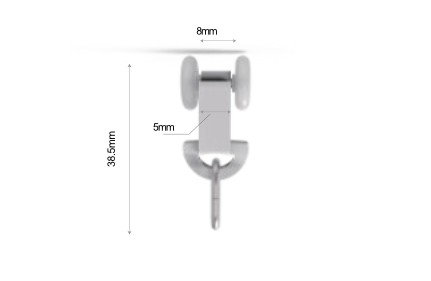

Yulitex-C (Somfy) Track Runner

Runner V1.0

Parameters

Product model: Runner V1.0

Runner main part: HDPE

Runner wheel: LDPE

Rivet: GB875 Aluminium

Max load (static): 15 KG

Max load (moving): 5 KG

Rivet gap: ≤ 0.9 mm

Suggested QTY per meter: 8 pcs

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

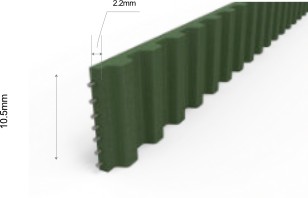

Yulitex-C (Somfy) Track Belt

T5-11.5 track belt (8 steel wires)

Parameters

Product model: Track belt

Belt material: Polyurethane + steel

Max load: 130 KG

Belt width: 11.5 mm

Length calculation: L = 2*L + L1 + L2

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Yulitex-C (Somfy) Track Bracket

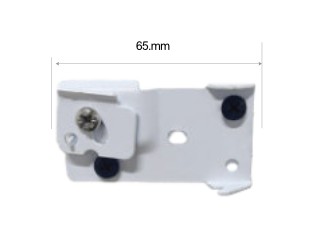

Ceiling bracket

Parameters

Product model: Ceiling bracket

Ceiling bracket steel part V1.0: Q235

Ceiling bracket plastic part V1.0: POM

Color: White

Screw size: 4*30 Screw

Install distance: ≤ 800 mm

Salt spray test: 48 h

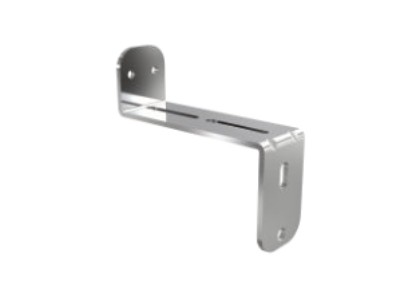

Mounting bracket

Parameters

Product model: Mounting bracket

Mounting bracket steel part: Q235

Color: Silver

Screw size: 4*30 Screw

Install distance: ≤ 800 mm

Salt spray test: 48 h

Installation: Single track

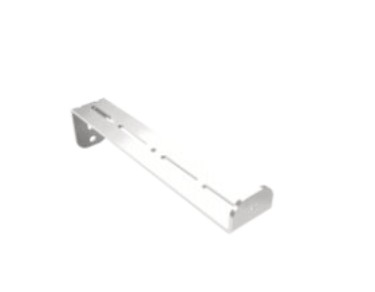

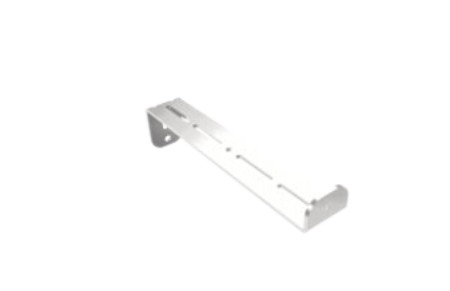

Double Mounting bracket

Parameters

Product model: Double Mounting bracket

Mounting bracket steel part: Q235

Color: Silver

Screw size: 4*30 Screw

Install distance: ≤ 800 mm

Salt spray test: 48 h

Installation: Double track

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

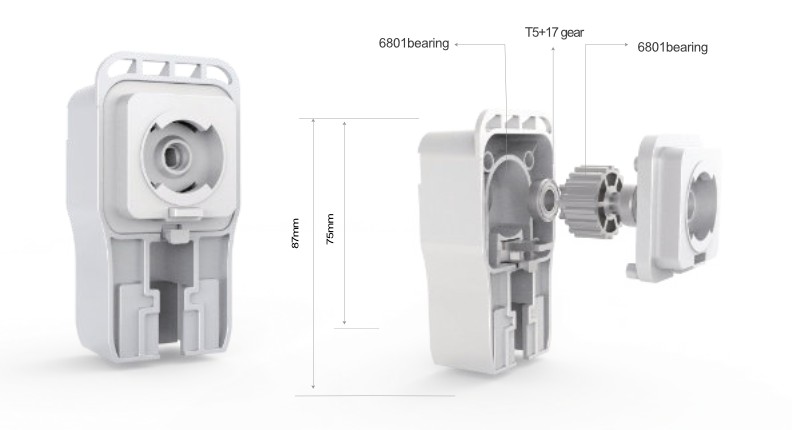

Yulitex-C (Somfy) track gear box

50 Master gear box V1.0

Parameters

Product model: Master gear box V 1.0

Gear box mainpart: ABS

T5+17 gear: POM

6801 bearing: GCR15 bearing steel

Spring: 65Mn spring steel

Positioning block: POM

Size: 60 mm

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Yulitex-C (Somfy) track runner

Parameters

Product model: Runner

Runner main part: HDPE

Runner wheel: LDPE

Rivet: GB875 Aluminium

Max load (static): 15 KG

Max load (moving): 5 KG

Rivet gap: ≤ 0.9 mm

Suggested QTY per meter: 8 pcs
