Description

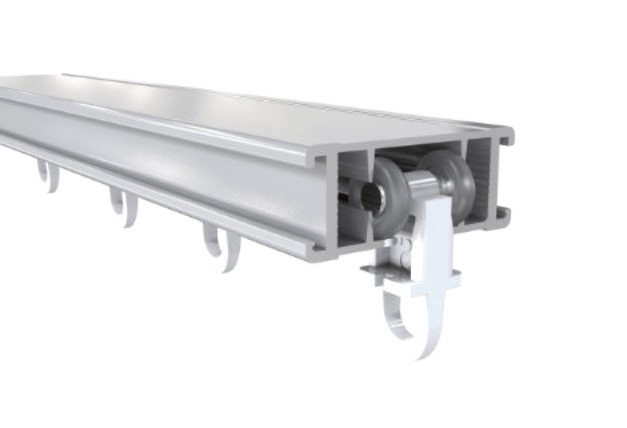

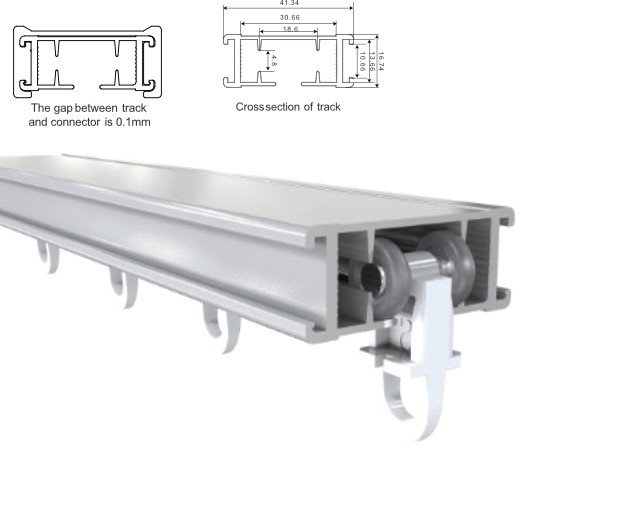

Yulitex adjustable track
Parameters
Product model: Yulitex adjustable track
Surface: Electrophoresis
Thickness: 1.9 mm
Max load 3m length: 50 KG
Certificate: RoHS
Note:
The track has no deformation after 15000 times test with 50kg load (3m track).
Patented track design.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

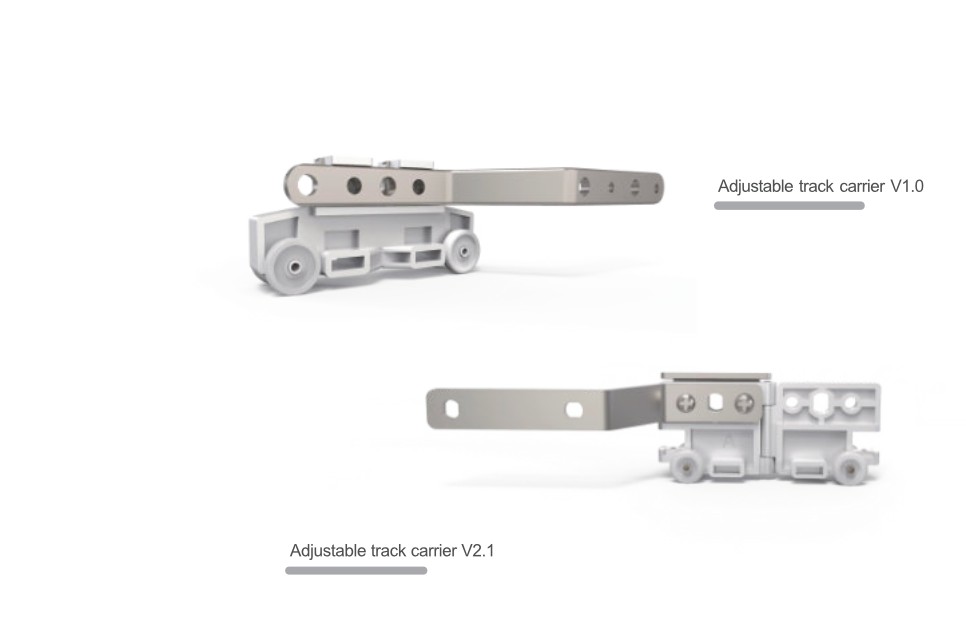

Yulitex adjustable track carrier
Parameters
Product model: Adjustable track carrier V1.0/V2.1
Belt Buckle: POM
Material of wheel: LDPE
Main part of carrier: POM
Carrier arm: 430 stainless steel
Fixing plate: 430 stainless steel
Rivets moving gap: ≤ 0.9 mm
Max load (static): 15 KG
Max load (moving): 7 KG
Note:
The carrier arm, fixing plate, connecting plate, rivets, and screws have all passed the 48 hour salt spray test.
When the lateral extension length of the arm is 20 mm, the manual operate experience is the most comfortable.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yulitex adjustable track gear box

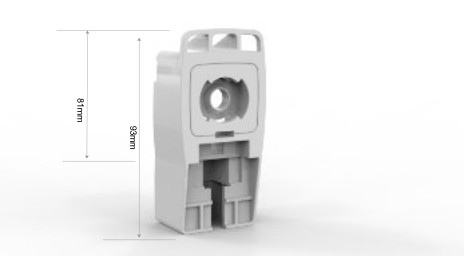

Master gear box V2.0
Parameters
Product model: Master gear box V 2.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 81mm
Sub gear box V2.0
Parameters
Product model: Sub gear box V 2.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 60mm

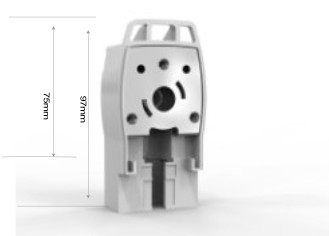

82 Master gear box V1.0
Parameters
Product model: 82 Master gear box V1.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 75mm

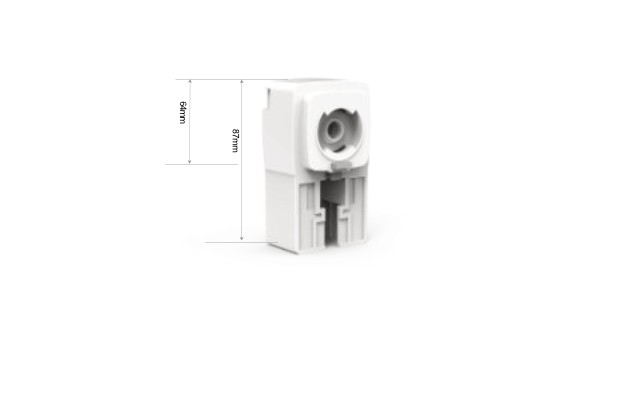

Master gear box V1.0
Parameters
Product model: Master gear box V1.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 64 mm

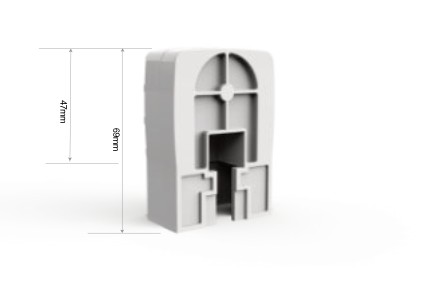

Sub gear box V1.0
Parameters
Product model: Sub gear box V1.0
Gear box mainpart: ABS
T5+17 gear: POM
6801 bearing: GCR15 bearing steel
Spring: 65Mn spring steel
Positioning block: POM
Size: 47 mm
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yulitex adjustable track bracket

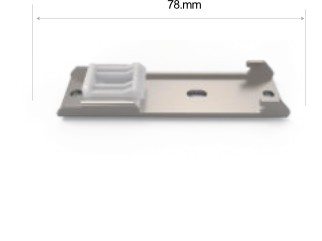

Ceiling bracket
Parameters
Product model: Ceiling bracket
Ceiling bracket steel part V1.0: Q235
Ceiling bracket plastic part V1.0: POM
Color: Silver
Screw size: 4*30 Screw
Install distance: ≤ 800 mm
Salt spray test: 48 h

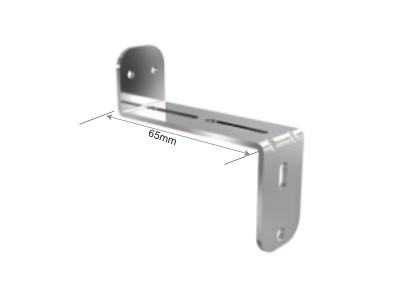

Mounting bracket
Parameters
Product model: Mounting bracket
Mounting bracket steel part: Q235
Color: Silver
Screw size: 4*30 Screw
Install distance: ≤ 800 mm
Salt spray test: 48 h
Installation: Single track
Double Mounting bracket
Parameters
Product model: Double Mounting bracket
Mounting bracket steel part: Q235
Color: Silver
Screw size: 4*30 Screw
Install distance: ≤ 800 mm
Salt spray test: 48 h
Installation: Double track
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yulitex adjustable track runner

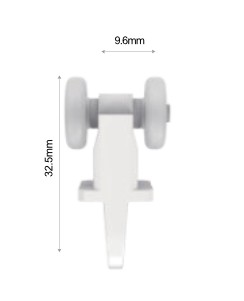

Runner V2.0
Parameters
Product model: Runner V2.0
Runner main part: HDPE
Runner wheel: LDPE
Rivet: GB875 Aluminium
Max load (static): 15 KG
Max load (moving): 5 KG
Rivet gap: ≤ 0.9 mm
Suggested QTY per meter: 8 pcs

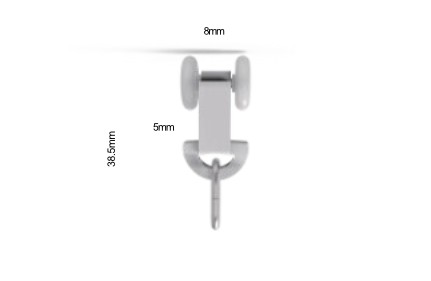

Runner V1.0
Parameters
Product model: Runner V1.0
Runner main part: HDPE
Runner wheel: LDPE
Rivet: GB875 Aluminium
Max load (static): 15 KG
Max load (moving): 5 KG
Rivet gap: ≤ 0.9 mm
Suggested QTY per meter: 8 pcs
Mounting bracket
Parameters
Product model: Mounting bracket
Mounting bracket steel part: Q235
Color: Silver
Screw size: 4*30 Screw
Install distance: ≤ 800 mm
Salt spray test: 48 h
Installation: Single track
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yulitex adjustable track belt
T5-10.5 track belt (8 kevlar wires)
Parameters
Product model: Track belt
Belt material: Polyurethane + kevlar
Max load: 130 KG
Belt width: 10.5 mm
Length calculation: L = 2*L + L1 + L2
T5-10.5 track belt (8 steel wires)
Parameters
Product model: Track belt
Belt material: Polyurethane + steel
Max load: 130 KG
Belt width: 10.5 mm
Length calculation: L = 2*L + L1 + L2
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yulitex adjustable track tensioner
Parameters
Product model: Tensioner
Tensioner main part: 304 stainless steel
Screw material: 304 stainless steel
Screw size: M4*12 screw
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Yulitex adjustable track auxiliary hook
Parameters
Product model: Auxiliary hook
Material: Galvanization
QTY per kit: 2 pcs
