Honeycomb Blinds Diagram - Top Down Bottom Up
2024-12-19

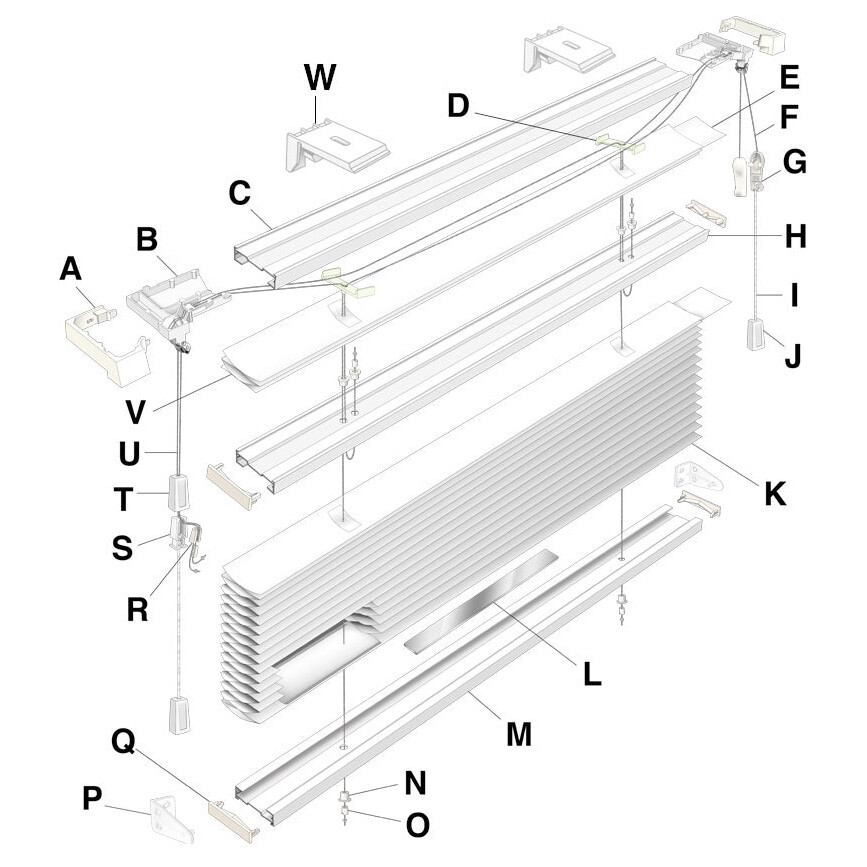

TDBU Diagram.jpg



This is only a general representation of a Top Down Bottom Up Honeycomb Blind.


   Part No.       Part Name
ACord Lock Cover
BCord Lock
CTop Rail
DCord Guide
EFiller Strip
FMiddle Rail Lift String
G  Safety Condenser
HMiddle Rail
I
Pull Cord
JTassel
KHoneycomb Fabric
LRail Weight (Optional)
MBottom Rail
NLift Cord Stop Pocket
OLift Cord Stop Ferrule
PHold Down Bracket
QEnd Cap
REqualizer
SEqualizer Housing
T    Cord Stop Assembly Cover
UBottom Rail Lift String
VTop Rail Fabric Insert
WMounting Bracket
