Honeycomb Blinds Diagram - EZ Glide

Honeycomb Blinds Diagram - EZ Glide

2024-12-19

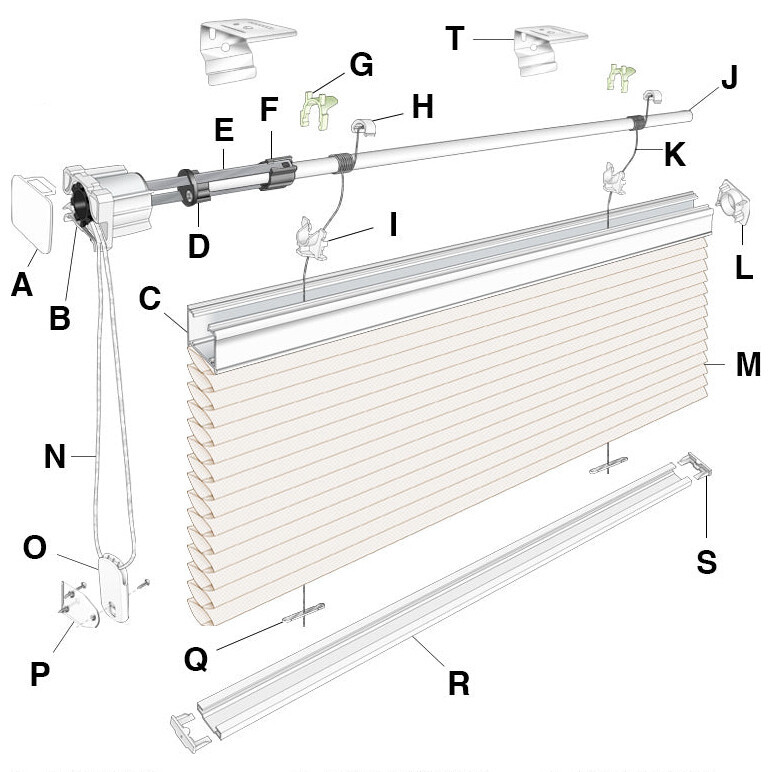

This is only a general representation of a EZ Glide Honeycomb Blind.

Part No.	Part Name
A	Clutch Cover
B	Clutch
C	Headrail
D	Clutch Drive Disk
E	Clutch Spear
F	Clutch Spear Retainer
G	Cradle Cover
H	Cord Retainer Clip
I	Cradle
J	Rod
K	Lift String
L	Headrail End Cap
M	Honeycomb Fabric
N	Cord Loop
O	Cord Tensioner
P	Tensioner Bracket
Q	String Retainer
R	Bottom Rail
S	Bottom Rail End Cap
T	Mounting Bracket
