Honeycomb Blinds Diagram - Standard
2024-12-18

STANDARD CELLULAR SHADE DIAGRAM.jpg

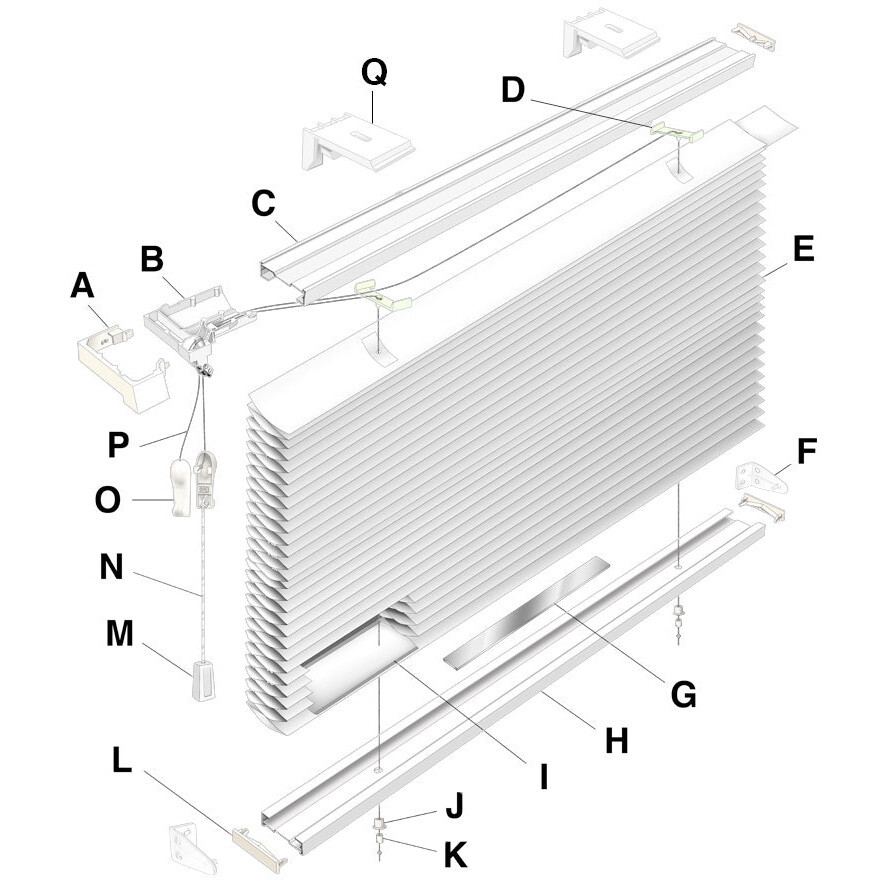

This is only a general representation of a Honeycomb Blind.


   Part No.       Part Name
ACord Lock Cover
BCord Lock
CTop Rail
DCord Guide
EHoneycomb Fabric
FHold Down Bracket
G    Rail Weight (Optional)
HBottom Rail
I
Filler Strip
JLift Cord Stop Pocket
KLift Cord Stop Ferrule
LEnd Cap
MTassel
NPull Cord
OSafety Condenser
PLift String
QMounting Bracket
