Assembly Instruction for Pleated Blind/Honeycomb Pleated Blinds - SMART FIX

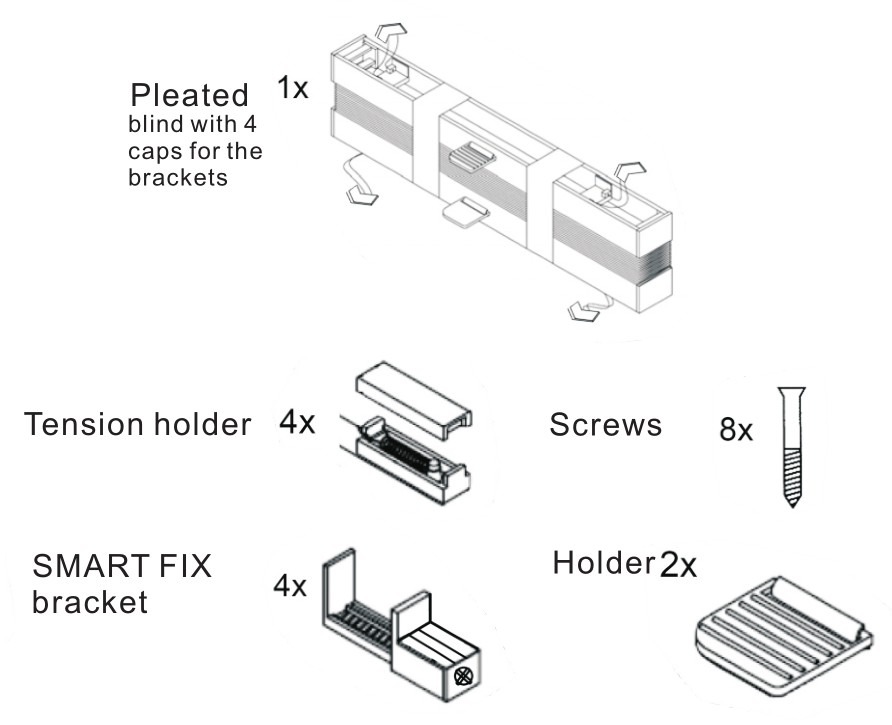

Table of Contents:
Please Note:
For easy installation, please remove the paper rolls after installing the pleated blind.
Mounting - Type 1
With Clip Function (Mounting without Drilling)
(A/B)

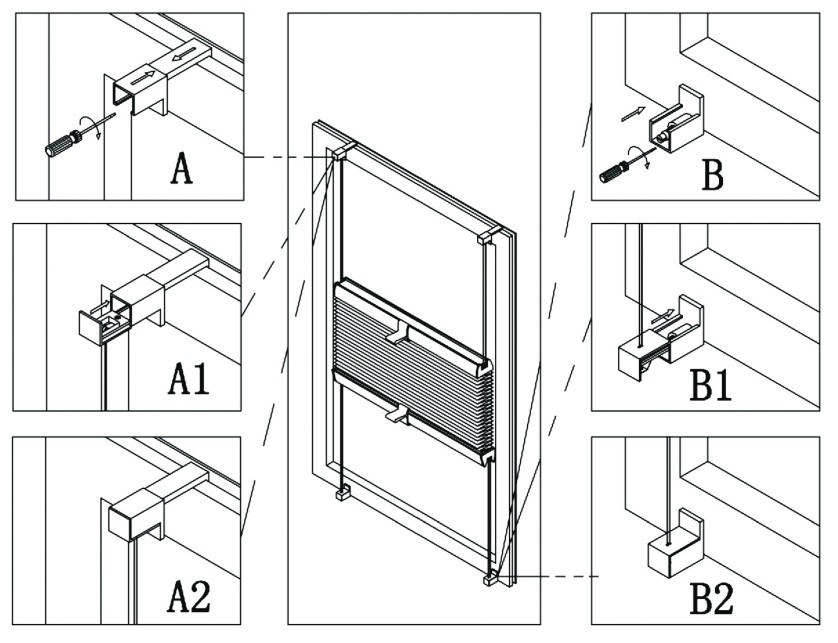

After checking the width of your window, please mount the SMART FIX bracket at the top and bottom of the window frame.
(A1,2 / B1,2)
Now, please slide the caps, which are connected to the cords, onto the SMART FIX bracket.
In case the cords are too loose, please unlock the bottom caps from the SMART FIX bracket again and shorten or tie knots in the cords according to the size of your window.
Attention! Please do not cut the cord too short; instead, keep it at an optimal tension.

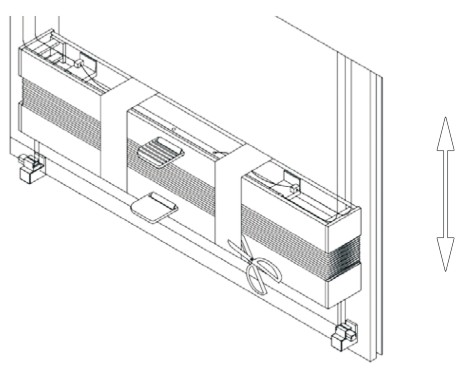

After completing the adjustments and pulling the pleated blind up and down several times, you can remove the paper roll and attach the holders in the middle of the top and bottom profiles.
Mounting - Type 2
With Tension Holder on Window Frame (Using Screws)
Please Note:
For a successful installation of the pleated blind, please measure in advance.
(A)

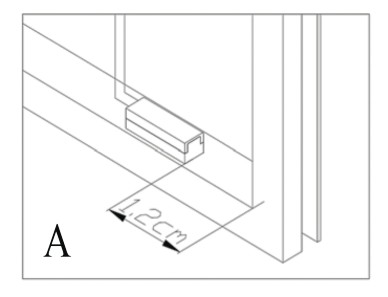

The bottom part of the tension holder must be installed with a distance of 1.2 cm from the left or right inner side of the window frame, using the screws provided in this package.
Please drill the holes using an appropriate drill.
It is crucial that the tension holder is positioned in the middle of the top and bottom inner window frames to ensure sufficient clearance from the window glass.
Note:
If necessary, please remove the upper part of the tension holder from the cords.

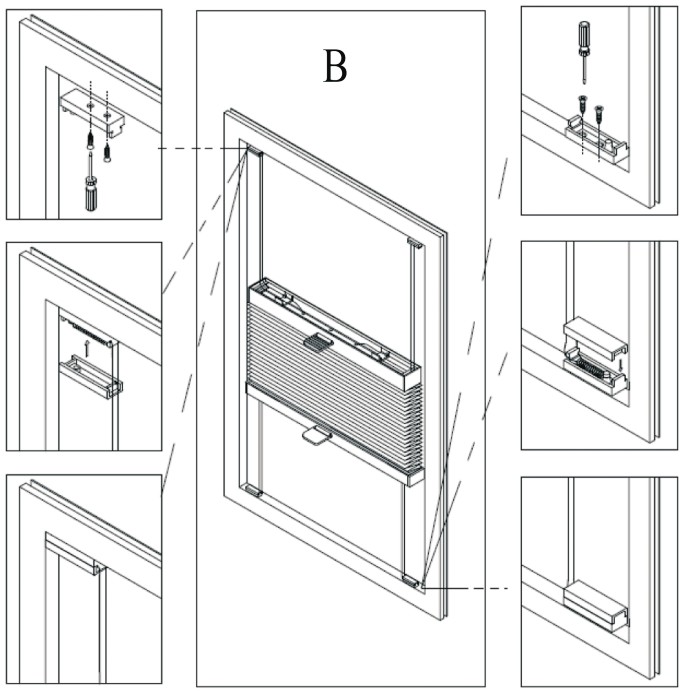

(B)
Please screw the 4 holders onto the bottom and top window frames.
While screwing, please ensure that the cords run along the inner side of the window frame.
After screwing, please thread the cords into the spring and fix them in the upper part of the holder. Then, the tension holder can be closed with the cap. If you need to adjust the length of the pleated blind, you can make the correction with the bottom tension holder. To do this, please loosen the knot at the spring.
Please adjust the tension of the cords to the required length and tie them again. Then, fix them into the bottom tension holder. You can cut off the excess length of the cords with scissors before closing the tension holder.

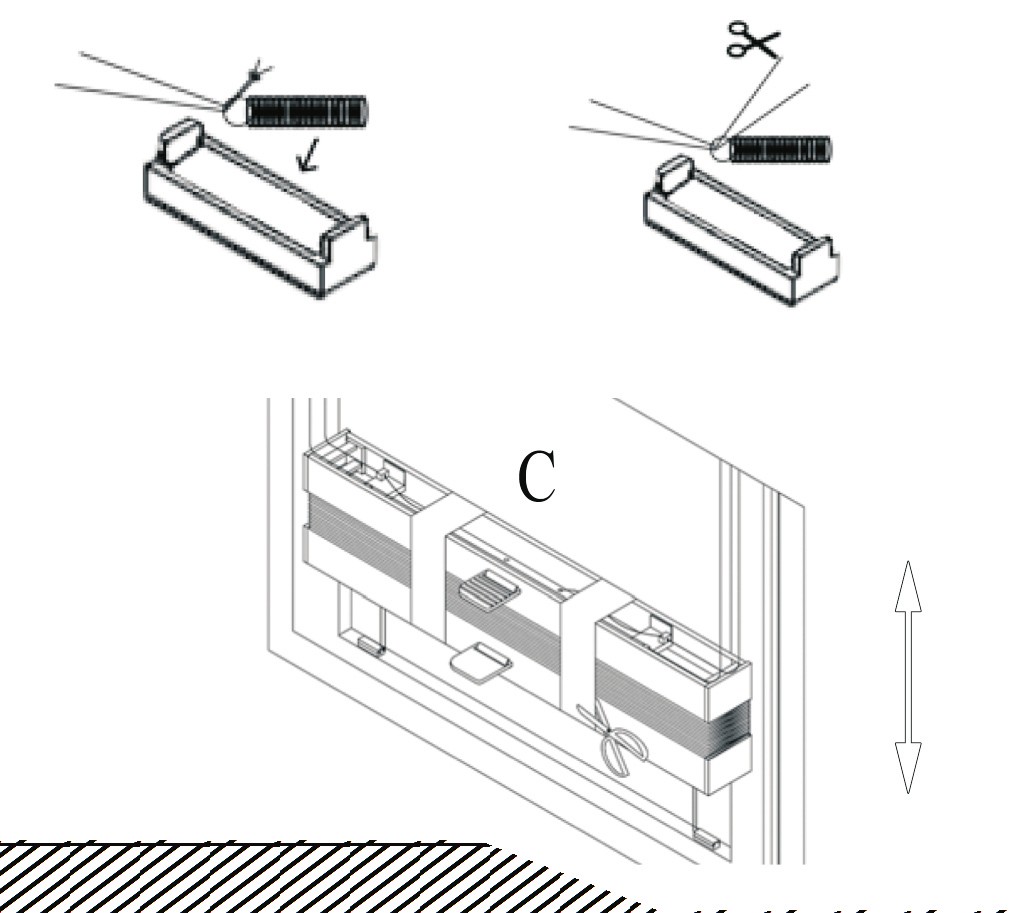

(C)
After completing the adjustments and pulling the pleated blind up and down several times, you can remove the paper roll and attach the holders in the middle of the top and bottom profiles.
